HVAC Ductwork Installation Plano, Texas

Professional HVAC Ductwork Installation Services in Plano, TX

Plano Duct Cleaning Pro installs HVAC ductwork that's ready to pass inspection when we finish. Our technicians design the system from a load calculation and pull the permits. Ductwork is installed using approved materials and methods. Joints are sealed with mastic and runs insulated to the required rating. Fire-rated penetrations are sealed where needed. We pressure test the system and document the results. Our team meets the inspector on site. We measure airflow at each room before the system goes into service. Old ductwork is removed and hauled away when it's being replaced. The specific HVAC ductwork installation services we provide in Plano are listed below.

Residential HVAC Ductwork Installation in Plano

Single-family homes often end up with ductwork installed by rule of thumb, which leaves some rooms overcooled and others struggling to reach the thermostat setting. Our team measure each room, notes window exposure and ceiling height, and builds a room-by-room airflow plan before any materials arrive. Installers set a sheet metal supply plenum on the air handler, run an extended trunk through the attic, and branch off to each room with properly sized takeoffs. Our air duct installation process includes a manual balancing damper near the trunk on every branch. After startup, the crew measures airflow at each register and sets the dampers to match the design. Each room then holds within a few degrees of the others.

Commercial Ductwork Installation in Plano

Commercial buildings need duct systems sized for occupant loads, equipment heat, and the ventilation rates set by the mechanical code. Our commercial air duct services team works from engineered mechanical drawings and coordinates duct routing with the electrical, plumbing, and fire sprinkler trades before installation starts. Installers hang rectangular galvanized trunks on threaded rod and trapeze supports above the ceiling grid, then connect VAV boxes and ceiling diffusers for each zone. Fire dampers go in at every rated wall and floor penetration. The crew seals all joints to the leakage class on the drawings and works with the test and balance contractor during final commissioning. The building opens with each zone receiving the airflow its occupants need.

New HVAC Ductwork Installation in Plano

Homes that relied on window units, wall heaters, or ductless systems have no duct paths, so adding central air means planning routes through an existing structure. Our air duct installation team surveys the attic, closets, and soffits to find routes that keep duct runs short and hidden. We cut new register openings in each room, frame a return air chase where needed, and install a compact trunk layout sized for the new equipment. Installers build soffits or use closet space to conceal ducts in rooms without attic access above them. The crew patches every drywall cut around the new registers before the job closes. The home gains quiet central air through registers placed for even coverage in each room.

HVAC Ductwork Replacement in Plano

Ductwork past its service life shows crushed flex runs, rusted sheet metal, and brittle insulation that let conditioned air escape into the attic. Our air duct replacement team runs a duct leakage test on the old system first so you see how much air it loses before replacement. The crew removes the old ducts in sections and hauls them away, keeping the air handler in place when it still has years of service left. We install new trunks and branches along improved routes and reuse the existing register openings where their locations work. A second leakage test after installation shows the improvement in numbers. Your AC cools the home faster and carries a lighter load on hot afternoons.

Sheet Metal Duct Fabrication in Plano

Off-the-shelf fittings rarely match the exact size of an air handler, a tight attic bay, or an odd framing gap. Our fabricators measure the equipment and the installation space, then cut and form galvanized sheet metal into custom plenums, transitions, and offsets. Each seam gets a Pittsburgh lock, and each connection gets an S-cleat or drive cleat so the fittings hold tight under pressure. Our air duct repair team ensures larger trunks receive cross-breaking or reinforcement to stop the panels from drumming when the blower starts. Every fitting gets sealed with mastic before the insulation goes on. Custom fittings let air turn corners smoothly, which lowers static pressure and blower noise.

Duct Insulation Installation in Plano

Bare or thinly insulated ducts in hot attics gain heat before cool air reaches your rooms and form condensation on their outer surface. Our home ventilation cleaning team inspects the existing insulation for gaps, compression, and torn vapor barriers. We wrap sheet metal trunks and fittings in foil-faced fiberglass duct wrap rated at R-8 and seal every seam with foil tape so humid air cannot reach the cold metal. Flex runs with damaged jackets get replaced with new R-8 insulated flex duct. Supports get adjusted so straps no longer compress the insulation. Supply air reaches the registers colder, and the ceiling below the ducts stays dry.

Zoned Duct System Installation in Plano

Two-story homes and open floor plans often have rooms that heat or cool at very different rates under a single thermostat. We divides the home into zones based on floor level and sun exposure, then plans a trunk layout that serves each zone separately. Installers fit motorized zone dampers in each zone trunk and wire them to a zone control panel and a thermostat in each area. A static pressure relief setup protects the blower when only one zone calls for air. The crew tests each zone independently after startup. Upstairs and downstairs rooms each hold their own temperature setting.

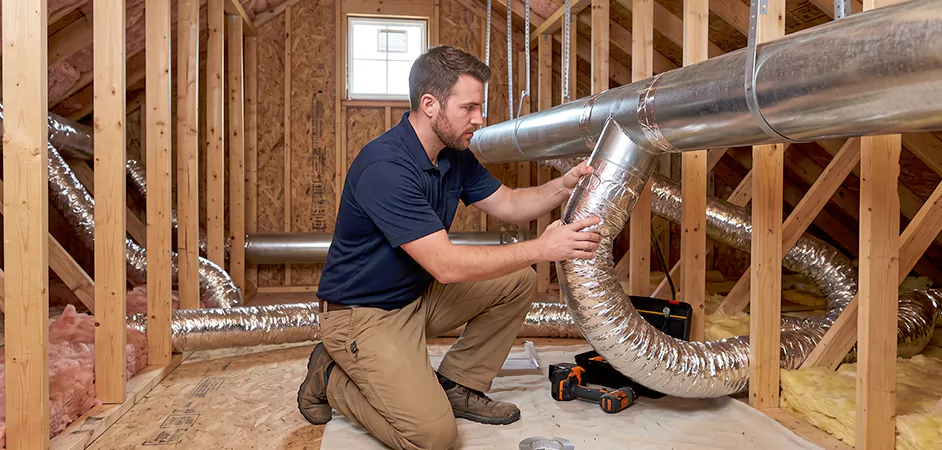

Ductwork Modification in Plano

Room additions, garage conversions, and kitchen remodels change the load on an HVAC system and often leave new spaces without proper supply or return air. We calculate the load for the new space and checks whether the existing trunk and equipment can carry the extra airflow. When capacity allows, installers extend the trunk, add a sized takeoff, and run a new branch to the space. When the system falls short, we recommend a trunk upgrade or a separate system and explain the reason with the load numbers. Every tie-in gets sealed and insulated to match the existing system. The new space stays as comfortable as the rest of the home without starving the original rooms of air.

HVAC Ductwork Installation Near Me in Plano, TX

Property owners looking for HVAC ductwork installation contractors near me want a local crew that knows area permit rules and building layouts. Plano Duct Cleaning Pro installs duct systems for homes and businesses across Plano and nearby areas including Willow Bend, Legacy West, and Haggard Park. Call (972) 752-7854 to schedule a free design visit with our estimator.
